Draper

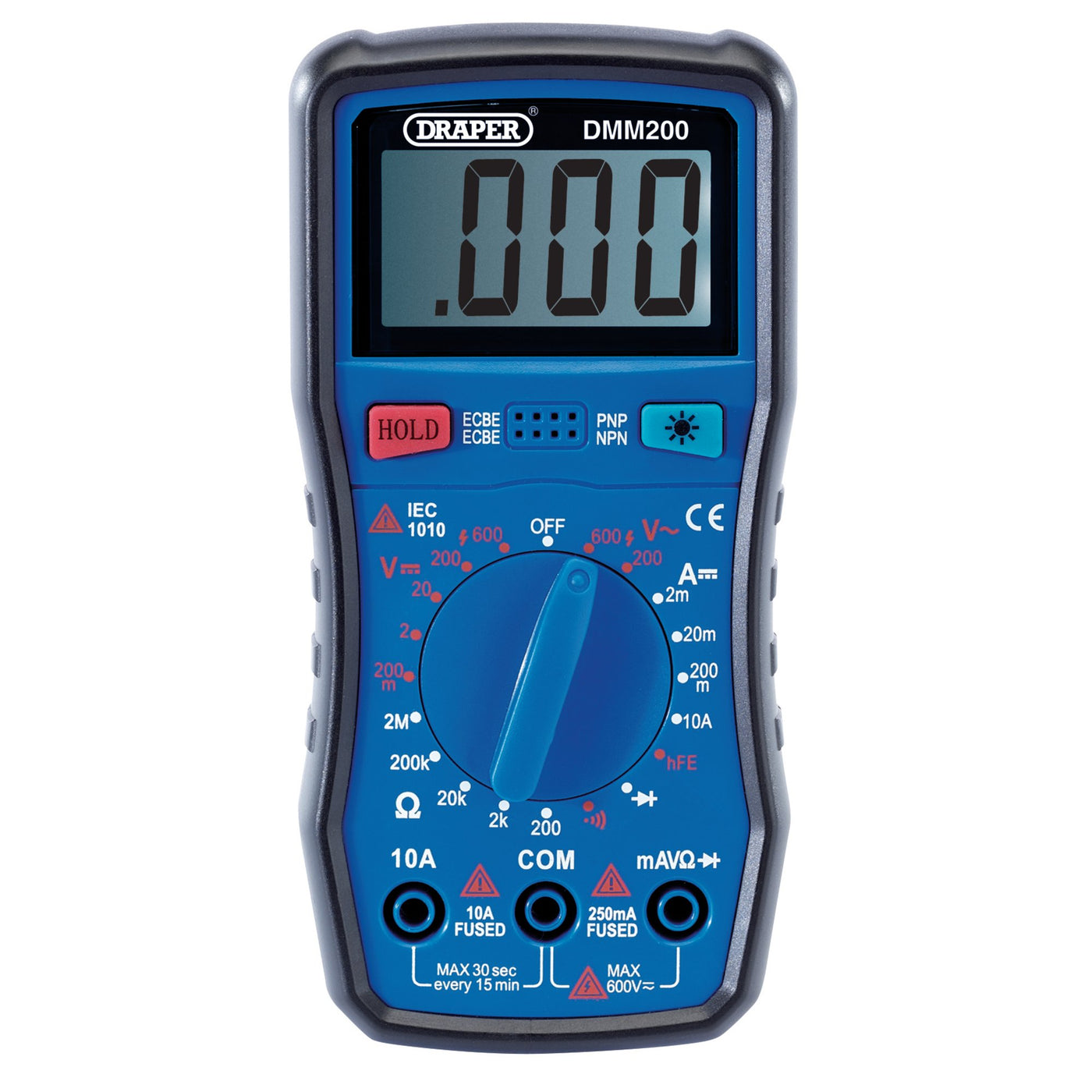

200 Series Manual Ranging Digital Multimeter, 600V, AC/DC

SKU: 41817

Regular price Rs. 5,563.27

Manual ranging capable of voltage, current, hEF and resistance testing. Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features. Supplied with test leads.

Your product will be delivered in 7–15 days

Wishlist

Contents

1 x Manual-Ranging Digital Multimeter, 1 x Test Leads, 1 x Case

Bullet points

• Manual ranging capable of voltage, current, hEF and resistance testing
• Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features
• Supplied with test leads
• Active

Warranty

12 months

Specifications:

AC Current: N/A
AC Voltage: 200V/600V
Automatic Power Off: Yes
Capacitance: N/A
DC Amps: 2mA/20mA/200mA/10A
DC Current: 2mA/20mA/200mA/10A
DC Voltage: 200mV/2V/20V/200V/600V
Diode on/off Test: Yes
Dimensions: 150mm x 74mm x 43mm
Duty Ratio: Yes
Dwell: N/A
Frequency: N/A
Resistance (Ohms): 200Ω/2kΩ/20kΩ/200kΩ/2MΩ
Symbol Unit Data Hold: Yes
TACH: N/A
Temperature Range: -20°C - 1000°C
Weight: 233g (approx.)
Battery Type: 1 x PP3 9V (not supplied)
