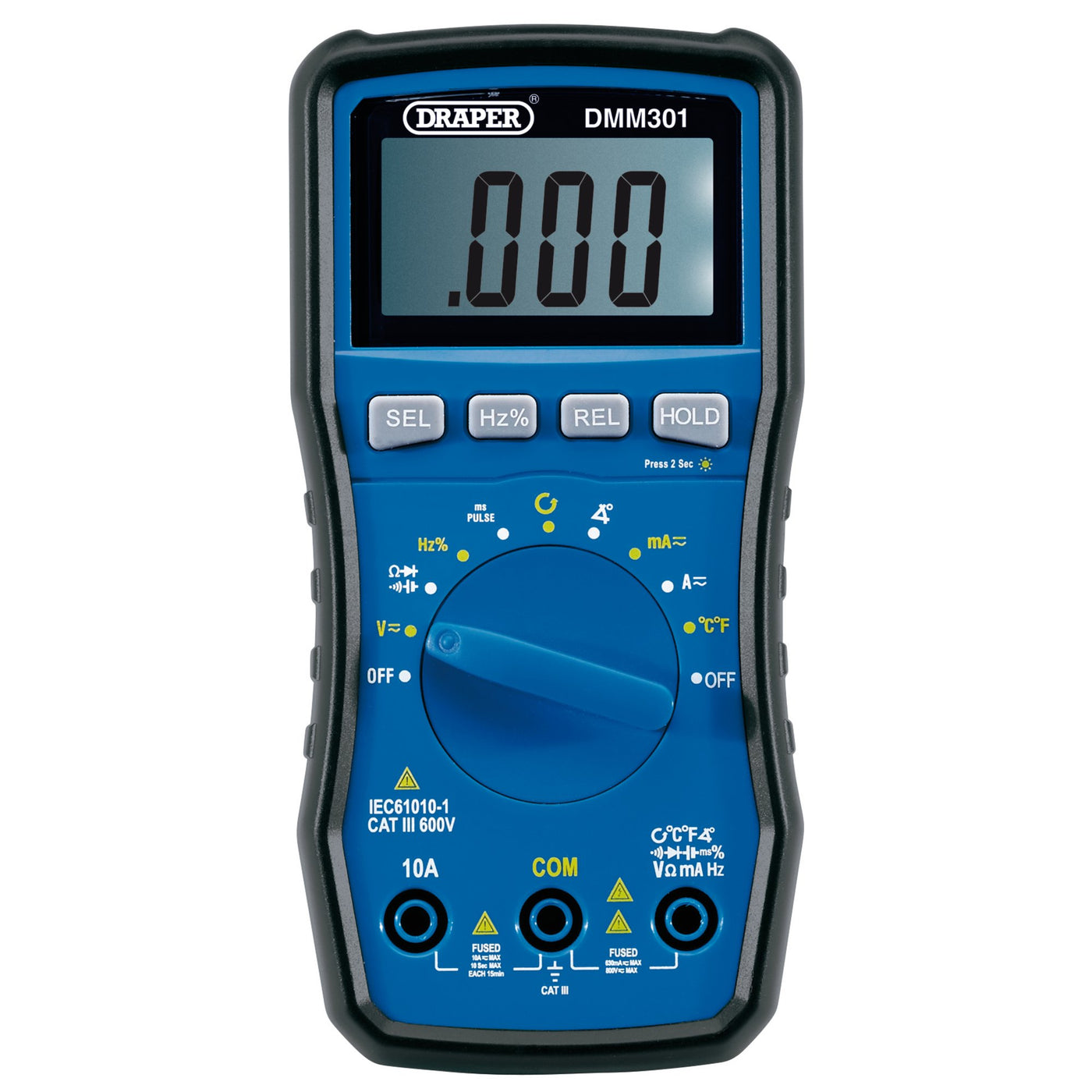

Draper

Automotive Digital Multimeter, 1 x Temperature Probe, 1 x Inductive Clamp

SKU: 41822

Regular price Rs. 22,941.05

Auto and manual ranging multimeter capable of voltage, current, resistance, diode, temperature and continuity testing. Fitted with a backlit LCD screen, DWELL, Tach, MAX, auto power off, continuity buzzer and data hold features. Supplied with test leads, temp probe, inductive clamp, case and 2x test probes.

Your product will be delivered in 7–15 days

Wishlist

Contents

1 x Automotive Digital Multimeter, 1 x Temperature Probe, 1 x Inductive Clamp

Bullet points

• Auto and manual ranging multimeter capable of voltage, current, resistance, diode, temperature and continuity testing
• Fitted with a backlit LCD screen, DWELL, Tach, MAX, auto power off, continuity buzzer and data hold features
• Supplied with test leads, temp probe, inductive clamp, and a case
• Active

Warranty

12 months

Specifications:

AC Amps: 6mA/600mA/6A/10A
AC Current: 60mA/600mA/6A/10A
AC Voltage: 6V/60V/600V
Automatic Power Off: Yes
Capacitance: 40nF/400nF/4µF/40µF/400µF/4000µF
DC Amps: 6mA/600mA/6A/10A
DC Current: 60mA/600mA/6A/10A
DC Voltage: 6V/60V/600V
Diode on/off Test: Yes
Dimensions: 184mm x 186mm x 72mm
Duty Ratio: Yes
Dwell: 4CYL, 6CYL, 8CYL
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
Resistance (Ohms): 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Symbol Unit Data Hold: Yes
TACH: RPM4 120-20000, RPM2 60-20000
Temperature: -20 to 1000ºC
Temperature Range: -20°C - 1000°C/-4°F - 1832°F
Weight: 507g (approx.)
Battery Type: 1 x PP3 9V (not supplied)
