Draper

12V Lambda Tester and Simulator

SKU: 24708

Regular price Rs. 16,621.37

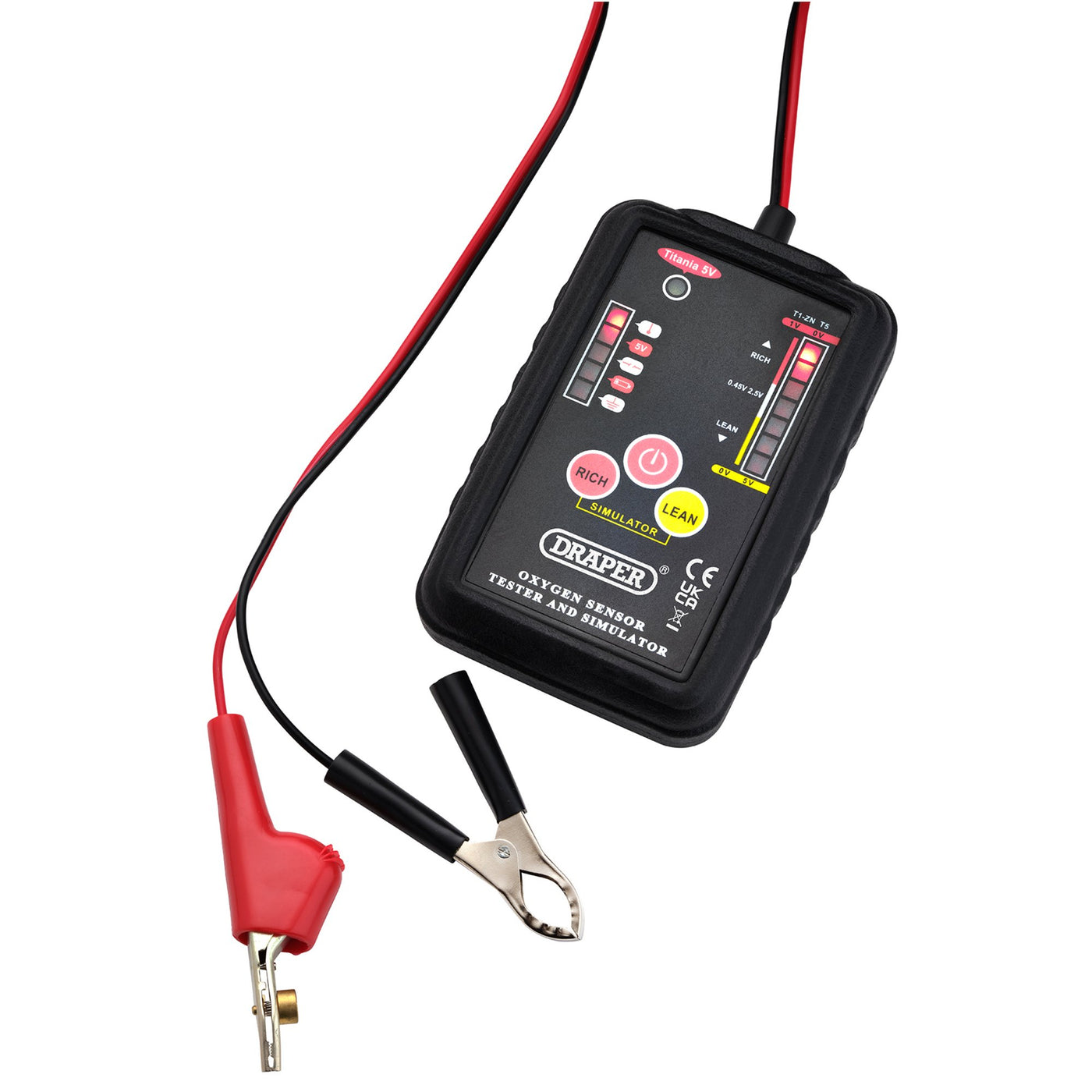

This 12V oxygen sensor tester and simulator is designed for testing both Zirconia and Titania lambda/oxygen sensors. It is suitable for testing 1 to 4 wire lambda/oxygen sensors, both heated and unheated. The device can simulate rich and lean mixtures to monitor the ECU's response. An LED display shows the crossover signal from the sensor. A wire piercing clamp is included for the positive lead, allowing for quick connection checks and confirming wire identity. Requires a 9V battery (available separately).

Your product will be delivered in 7–15 days

Wishlist

Contents

1 x 12V Lambda Tester and Simulator

Bullet points

• Tests and simulates Zircona and Titania lambda/oxygen sensors
• Suitable for 1 to 4 wire sensors - heated and unheated
• LED indicators
• Includes wire piercing clamp
• Requires 9V battery (not supplied)
• Active

Warranty

24 months

Specifications:

Power supply: 12V DC vehicle battery
Zirconia: 1V
Titania: 1V and 5V
Fuel type: Petrol and diesel
Positive and negative lead length: 2m
Test probe lead length: 450mm
Tester battery: 9V (not supplied)
Dimensions: 140 x 90 x 35mm
Weight: 311g
