Draper

5V/12V Injector Tester

SKU: 24703

Regular price Rs. 18,778.70

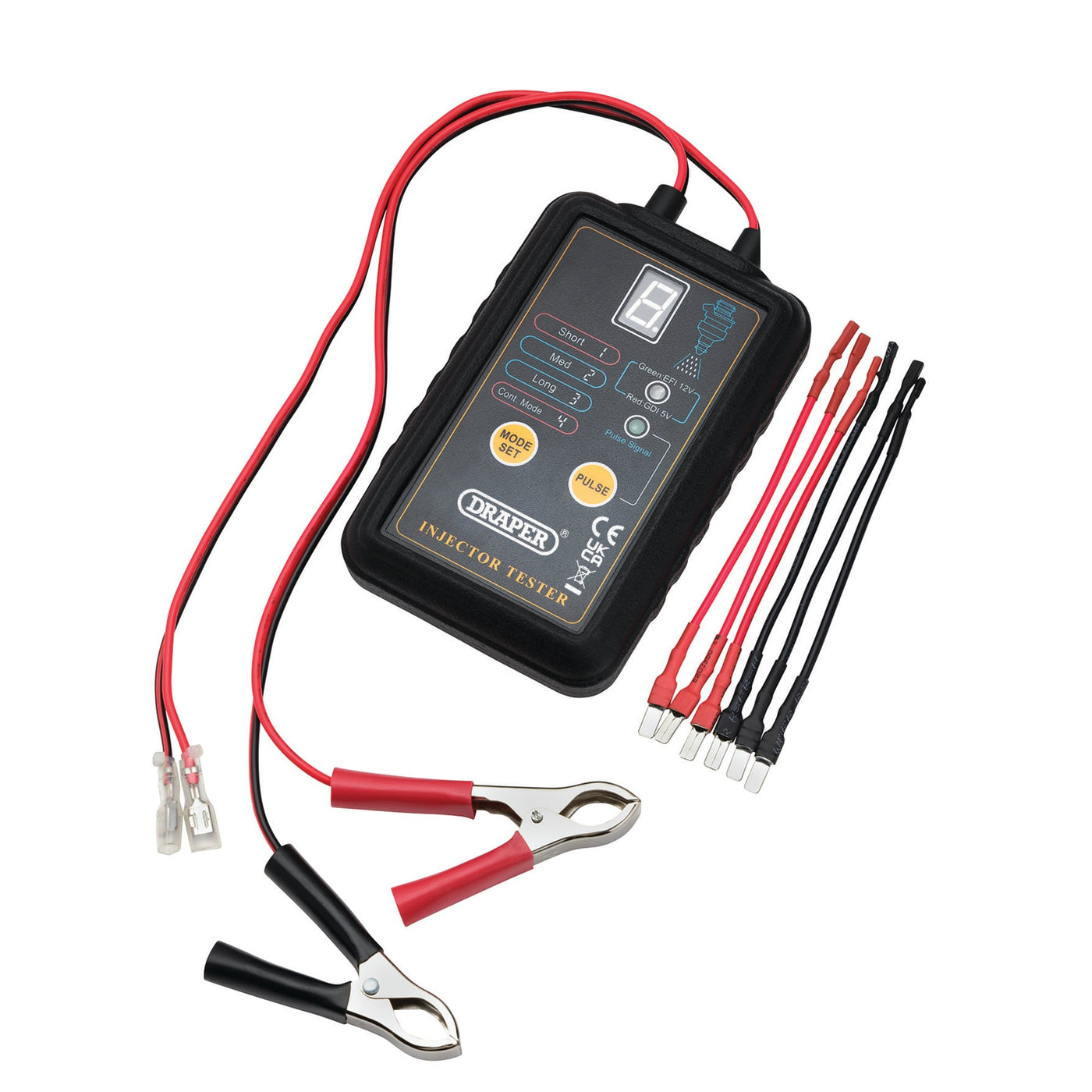

This injector tester is designed to operate injectors electronically, allowing for the diagnosis of fuel delivery issues such as blocked, sticky or leaking injectors. It features switchable 12V and 5V outputs, depending on the type of injector being tested or activated. The tester offers four selectable modes: short, medium, long, and continuous, and includes an easy-to-read LED indicator. In continuous mode, the tester can also be used for injector cleaning. Additionally, it comes with three pairs of extension leads to facilitate use in restricted engine bays.

Your product will be delivered in 7–15 days

Wishlist

Contents

1 x 5V/12V Injector Tester

Bullet points

• LED indicators
• Full function test or aid injector cleaning
• Switchable 12V and 5V output
• Four selectable modes - short, medium, long and continuous mode
• Powered by 12V car battery
• Includes three pairs of extension leads for restricted engine bays
• Active

Warranty

24 months

Specifications:

Power supply: 12V DC vehicle battery
Injector type 1: 12V EFI (Electronic fuel injection)
Injector type 2: 5V GDI (Gasoline direct injection)
Fuel type: Petrol
Positive/negative lead length (injector and battery): 450mm
Positive/negative extension lead length: 140mm
Dimensions: 140 x 90 x 135mm
Weight: 243g
