Draper

Pneumatic/Hydraulic Motorcycle/ATV Small Garden Machinery Lift, 680kg

SKU: 37190

Regular price Rs. 877,209.49

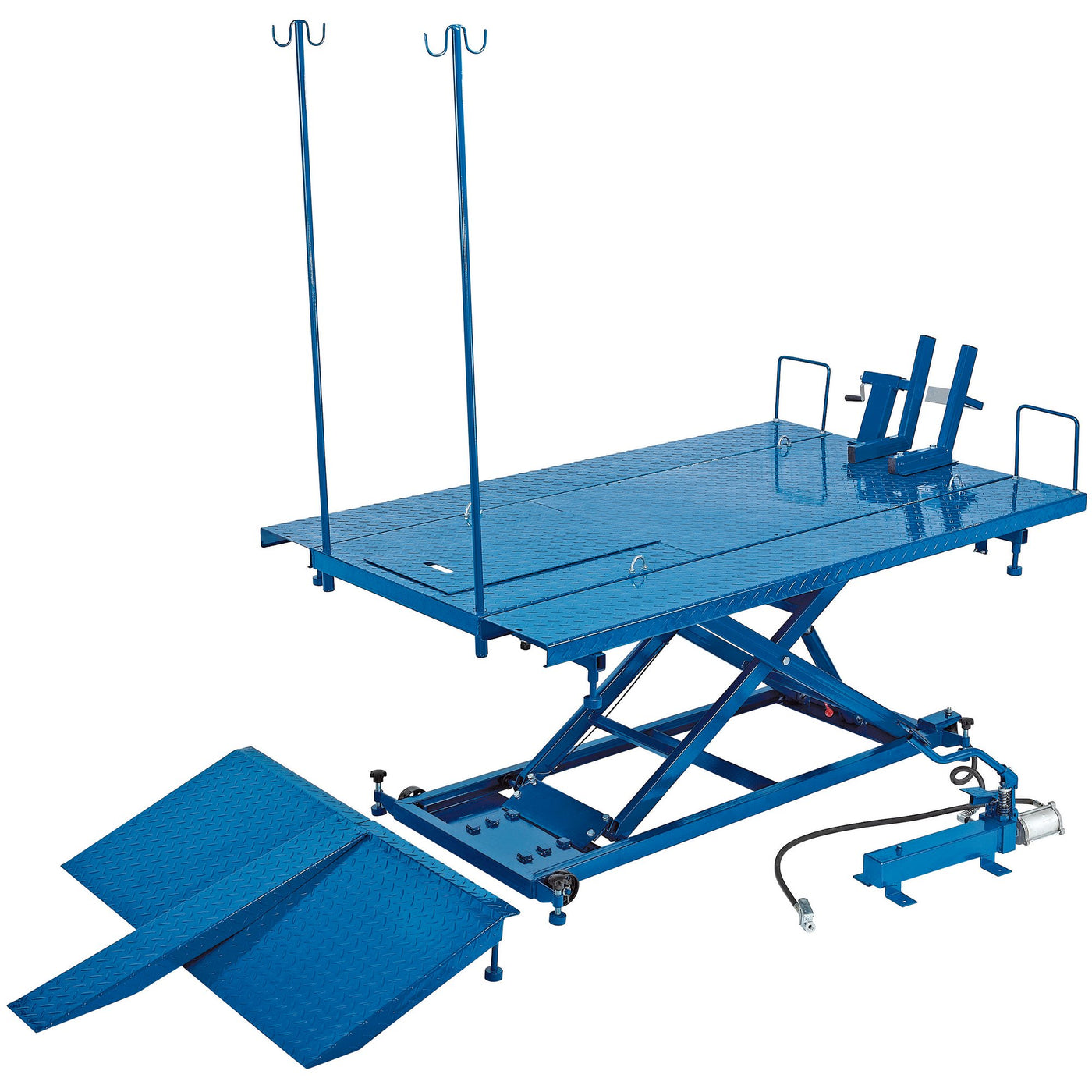

Large lift that supports motorcycles plus all terrain vehicles (ATV), Mini tractors and other similar-sized vehicles which can be accommodated by using the Supplied additional side platforms for extra width. All steel construction with heavy duty foot operated dual hydraulic pump and pneumatic pump-up system with controller and ram assembly. Safety table lock device to prevent accidental lowering. Removable front wheel clamp and rear panel to facilitate rear wheel changes (motorcycles only). Base assembly fitted with transport wheels and lock downs to prevent lift from moving whilst in use. Table surface is stippled for safety and grip whilst loading motorcycles/ATV/small garden machinery. Supplied in wooden crate.

Your product will be delivered in 7–15 days

Wishlist

Contents

1 x Pneumatic/Hydraulic Motorcycle/ATV Small Garden Machinery Lift, 680kg

Bullet points

• Manufactured to EN1494-2000 Specification
• Large lift that supports motorcycles plus all terrain vehicles (ATV), mini tractors and other similar-sized vehicles which can be accommodated by using the supplied additional side platforms for extra width
• All steel construction with heavy duty foot operated hydraulic pump or pneumatic pump-up system with controller and ram assembly
• Safety table lock device to prevent accidental lowering
• Removable front wheel clamp and rear panel to facilitate rear wheel changes (motorcycles only)
• Base assembly fitted with transport wheels and lock downs to prevent lift from moving whilst in use
• Table surface is stippled for safety and grip whilst loading motorcycles
• Working table size: 1950 x 1220mm including side extension plates (L x W)
• Three working heights: 550, 720, 840mm
• Maximum height: 885mm
• Active

Warranty

12 months

Specifications:

Air Inlet: 1/4"BSP
Capacity: 680kg (1500lbs)
Closed Height: 200mm
Lifting Range: 200-885mm
Max Height: 885mm
Operating Air Pressure: 90psi (6.2bar)
Rear Wheel Removal Panel (L x W): 600 x 250mm
Motorcycle Loading Ramp (L X W): 850 x 150mm
Table As For Atv Use (L X W): 1950 x 1220mm
Table As Motorcycle Lift (L X W): 1950 x 680mm
Working Height Stops : 550; 720; 840mm
Weight: 260kg
