Draper Expert

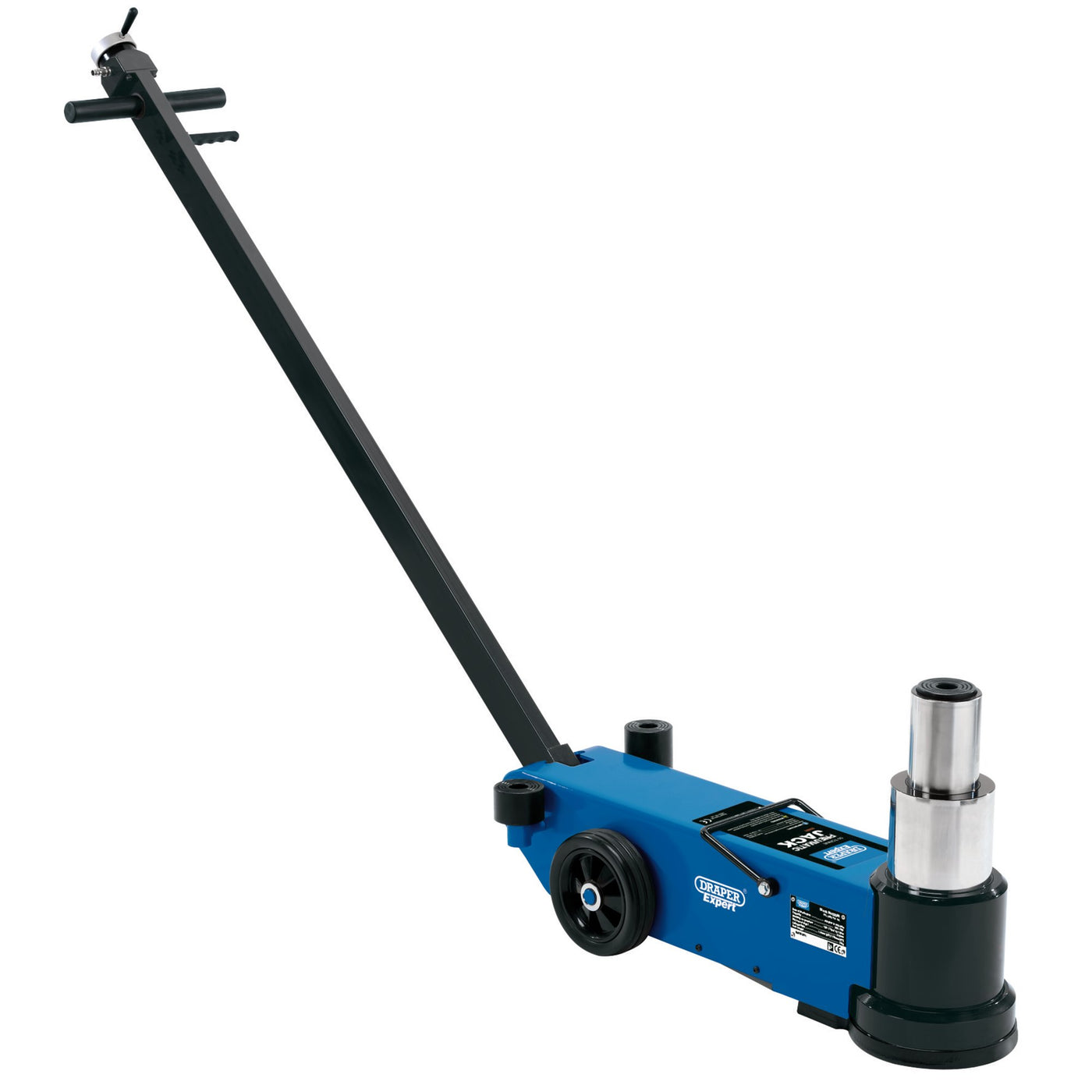

Pneumatic Jack, 50 Tonne

SKU: 2081

Regular price Rs. 490,162.23

Expert Quality, portable and compact twin stage pneumatic jack, capable of lifting 50 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.

Your product will be delivered in 7–15 days

Wishlist

Contents

1 x Pneumatic Jack, 50 Tonne

Bullet points

• Expert Quality
• Twin stage pneumatic jack
• Ergonomic handle grips
• Slow Down' valve
• Self Return' switch
• Twin PP and rubber wheels
• Industrial seals
• Supplied with 1/4" BSP inlet, 45mm and 75mm extensions
• Manufactured, tested and certified to the current EN1494 standard
• Active

Warranty

12 months

Specifications:

Air Consumption: 11.5cfm
Air Inlet: 1/4" BSP
Capacity: 50 Tonne (50,000kg)25 Tonne (25,000kg)
Chassis Dimensions: 805 x 200 x 215mm
Handle Length: 1380mm
Lifting Height Position 1: 115mm
Lifting Height Position 2: 114mm
Max Height Stage 1: 450mm (inc extensions)
Max Height Stage 2: 564mm (inc extensions)
Min Height: 215mm
Nett Weight: 73kg
Operating Air Pressure: 9 – 12BAR (130 – 174psi)
Saddle Diameter: 70mm
Wheel Diameter: 165mm
Wheel Width: 42.5mm
