Draper Expert

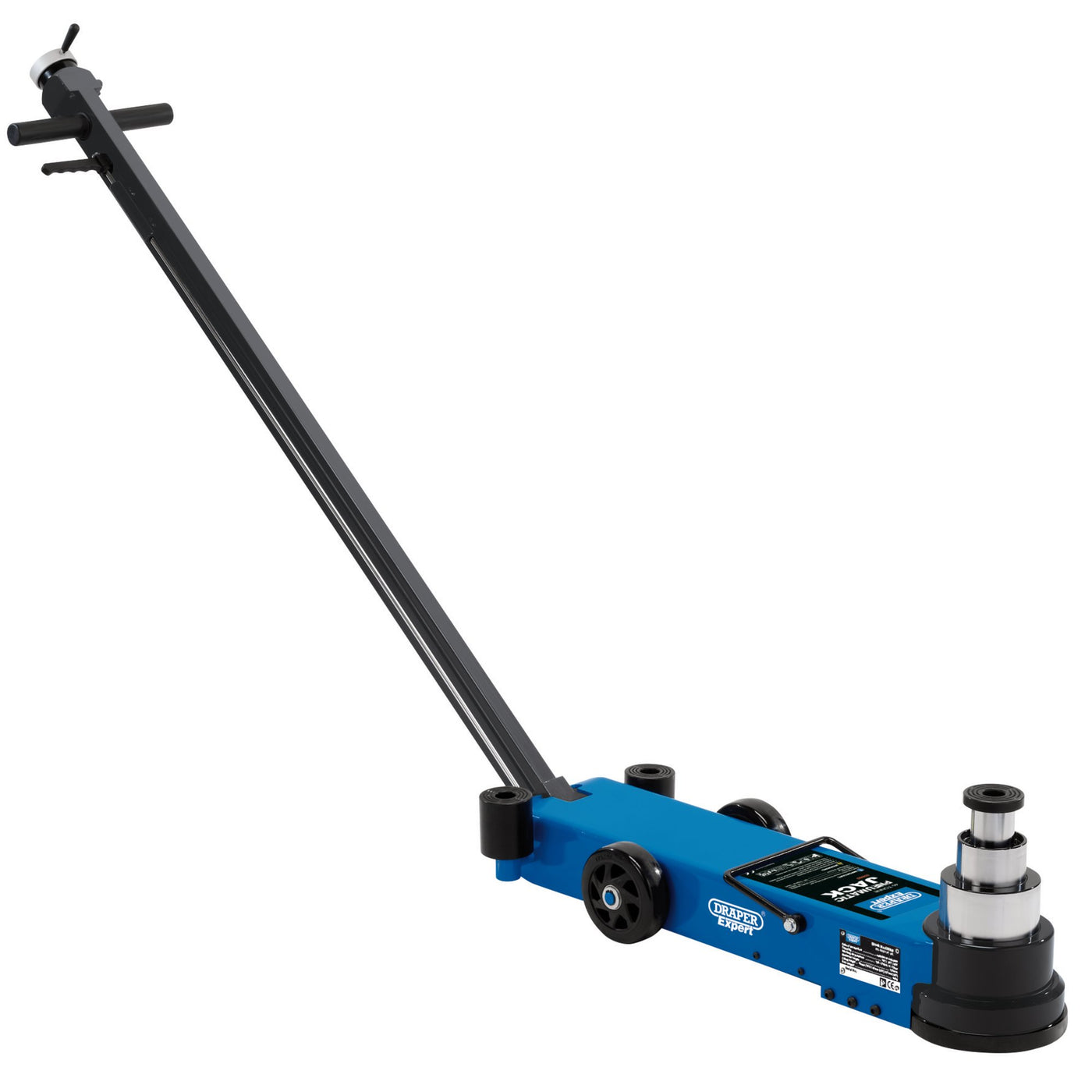

Pneumatic Long Chassis Low Profile Jack, 40 Tonne

SKU: 2080

Regular price Rs. 489,277.20

Expert Quality, long chassis, extra low profile pneumatic jack. The 125mm entry height has a total reach of 2210mm and is capable of lifting 40 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a 'Slow Down' valve and a 'Self-Return' switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector.

Your product will be delivered in 7–15 days

Wishlist

Contents

1 x Pneumatic Long Chassis Low Profile Jack, 40 Tonne

Bullet points

• Expert Quality
• Three stage pneumatic jack
• Extra low profile, 125mm entry height
• Long chassis, 2210mm reach
• ‘Slow Down’ valve
• ‘Self Return’ switch
• Twin PP and rubber wheels
• Industrial seals
• Supplied with 1/4” BSP inlet and 45mm/75mm extensions
• Active

Warranty

12 months

Specifications:

Air Consumption: 11.5cfm
Air Inlet: 1/4" BSP
Capacity: 40 Tonne (40,000kg)20 Tonne (20,000kg)10 Tonne (10,000kg)
Chassis Dimensions: 830 x 179 x 125mm
Handle Length: 1380mm
Lifting Height Position 1: 57mm
Max Height Stage 1: 302mm (inc extensions)
Max Height Stage 2: 347mm (inc extensions)
Min Height: 125mm
Nett Weight: 44kg
Operating Air Pressure: 9 – 12BAR (130 – 174psi)
Saddle Diameter: 70mm
Wheel Diameter: 125mm
Max Height Stage 3: 396mm (inc extensions)
Wheel Width: 47.5mm
