Draper

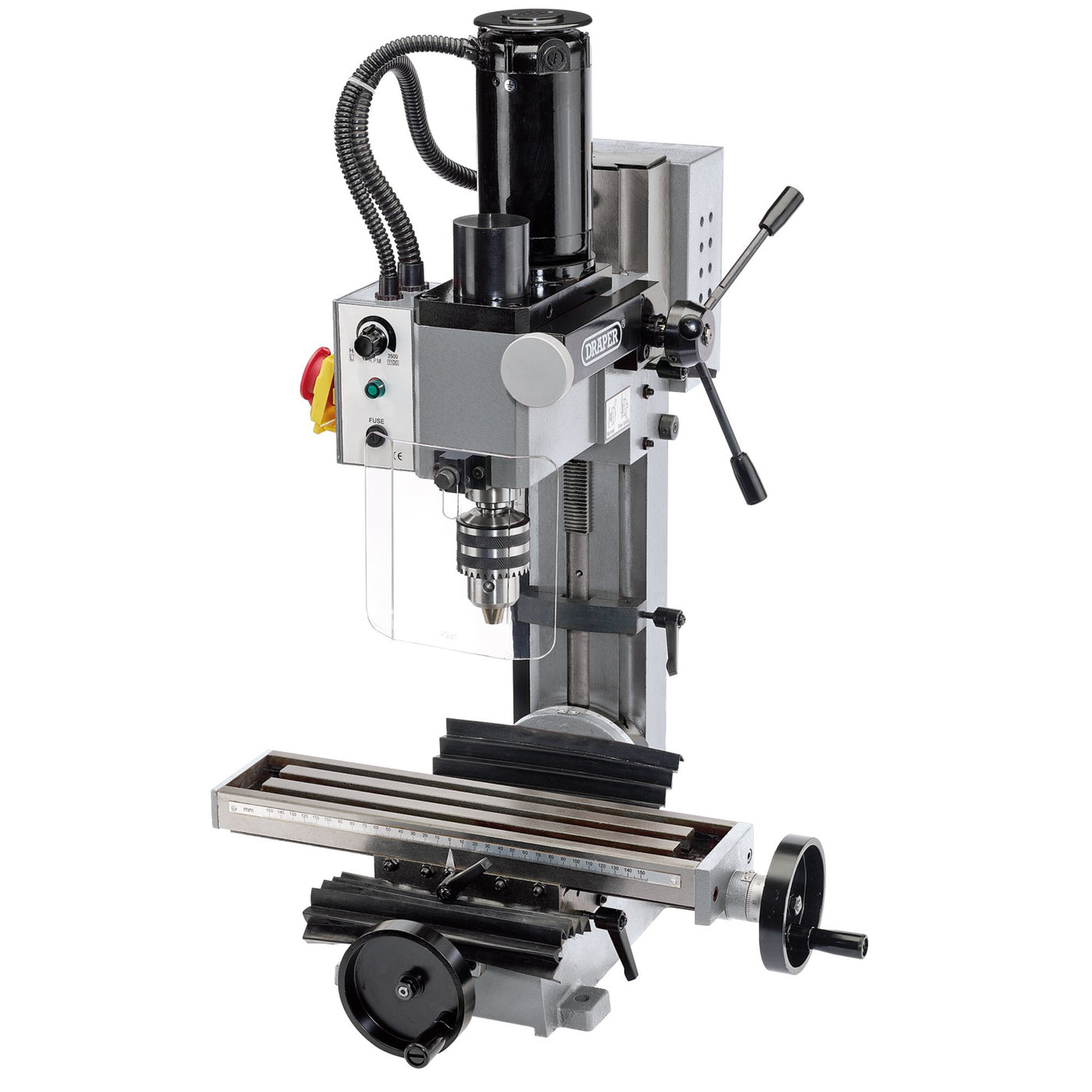

Variable Speed Mini Milling/Drilling Machine, 350W

SKU: 34023

Regular price Rs. 403,903.16

Bench mounting Mini milling/drilling machine which will handle most materials. Incorporates a working table with T slots to enable clamping or workpieces and metric graduated compound scales. Column tilts from 0 - 45° from vertical. No - volt switch to prevent accidental switch on and approved three pin cable and approved plug.

Your product will be delivered in 7–15 days

Wishlist

Contents

1 x Variable Speed Mini Milling/Drilling Machine, 350W

Bullet points

• Can be bench mounted
• Handles most materials
• Working table with T slots
• Metric graduated compound scales
• Column tilts from 0-45°
• No-volt switch
• Approved 3-pin plug and cable
• Active

Warranty

12 months

Specifications:

Cross Axis: 100mm
Drilling Capacity: 13mm
End Milling Capacity: 16mm
Face Milling Capacity: 30mm
Headstock Travel: 180mm
High Spindle Speed: 100-2500r/min
Longitudinal Axis: 220mm
Low Spindle Speed: 100-1100r/min
Spindle Taper: MT3
Spindle Tilt Axis: ±0-45°
Table Size: 390 x 92mm
Throat Depth: 170mm
T Slot: 12mm
Weight: 60kg
